Summary:

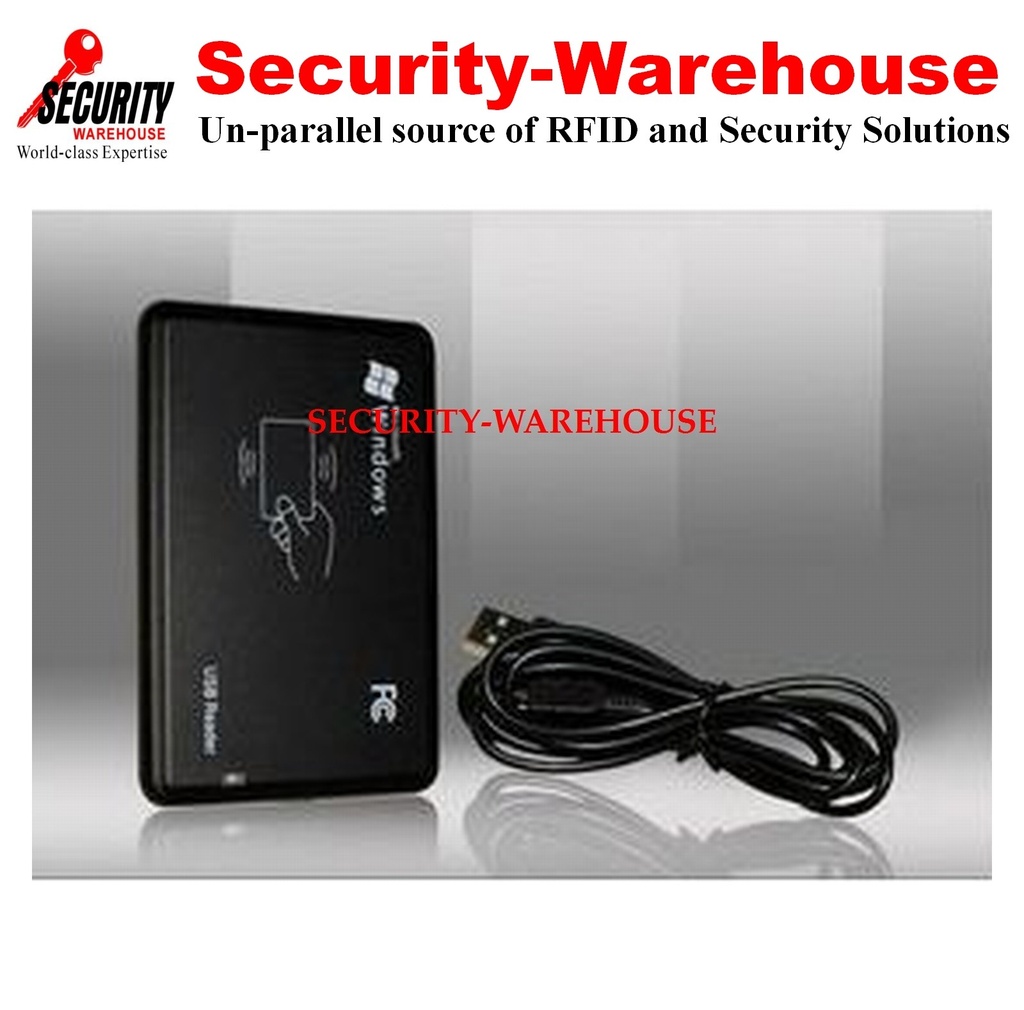

ID or IC Desktop USB Reader is the RFID reader with customizable options for a variety of applications, this reader to read and write circuits and algorithms have been carefully optimized for low power consumption, sensor sensitivity, stability reader, speed reader fast and so, with this reader app program.
A lot of cards can be supported by this series of readers including but not limiting to EM4305, T5577, EM4100, Mifare, Fudan, Ntag and so on.
Product support re-development, with the company providing the API interface program, you can quickly put this reader integrated into the various types of credit card issuers, attendance, charging systems.
Specification:
- Frequency: 125KHz / 13.56 Mhz
- Power: USB power supply
- Distance: 0 ~ 6cm
- Interface: USB to serial port baud rate support from 9600 to 115200
- Tip: beep, 2-color LED
- EEPROM ：64 Bytes
- Manchester RF/64，Manchester RF/32，Bi-phase RF/32, etc
- Operating System: Windows & Linux
- Supported issuing standard: ID, EM4001, EM4100, TK4001, TK4100, Mifare, Ntag
- Support Card: T5557, T5567, T5577, EM4205, EM4305 standard cards, shaped cards, ear tag(by reading distance limit, does not support the injection of glass labels, such labels need to read and write can choose other models of the company's products)
Package:
- reader/writer x 1
- USB cable x 1

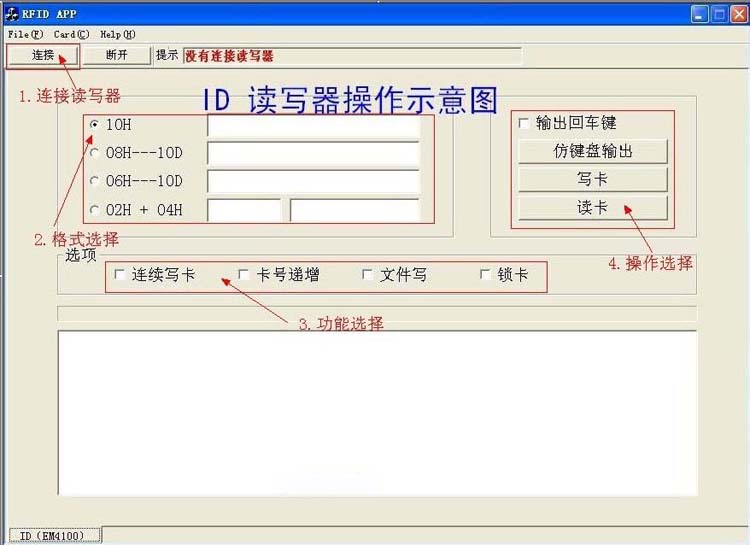

- Software Development Kit and demo software x 1 (free download, no expiry)
